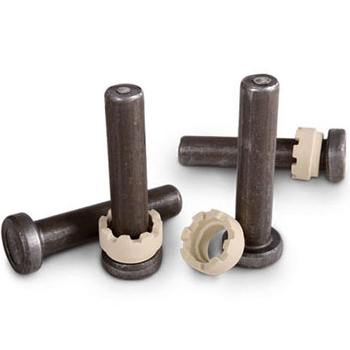

Shear Connector Studs

Shear Studs and Metal Decking Studs made by Arabian Gratings are the very best in the industry. Through deck, welding is also possible where the Headed shear connector is welded through a formed galvanized sheet onto a steel beam. Concrete is then poured over the formed sheet and the shear connectors.

Any industry that needs durability, speed, par excellence quality and high load bearing capacity during construction can make use of Arabian Gratings superior shear connectors.

We offer headed shear connector studs that can be used in any concrete connections. The standards connector studs that have a stock availability throughout the year have the following dimensions:

DIMENSIONS OF SHEAR CONNECTORS (ALL DIMENSIONS ARE IN MM)
Stud Dia.(d1) Stud Dia.(d2) Length (L)
16 32 50/75/100/125
19 32 75/100/125/135
22 35 75/100/125/135
22 40 75/100/125/135
TECHNICAL DATA (SHEAR CONNECTORS)
Tensile Strength Minimum 450 N/mm2)
Yield Point Minimum 350 N/mm2
Elongation 20% Min
Carbon Upto 0.08 - 0.18
Manganese 0.30 - 0.60
Silicon 0.15 - 0.30
