Arabian Gratings offers a wide range of Stainless Steel (INOX) grating, ideally suited for applications where the potential for rust or corrosion is a major consideration and made by using SS 304, 304L, 316, 316L Grade materials and shall be supplied in Mill Finish or Electro Polished Finish.
Platform Walkways in Oil and Gas Sector, Petrochemical Industries, Civil Construction, Food Industries etc.
Stainless Steel grating is usually custom made to project specifications. The standard panel sizes are generally the same as steel grating stock panels, depending on profile chosen.
Our Gratings are widely used in Trenches, Platform Walkways in Oil & Gas Sector, Petrochemical Industries, Civil Constructions, Food Industries, Chemical Industries, Industrial Kitchens, etc.

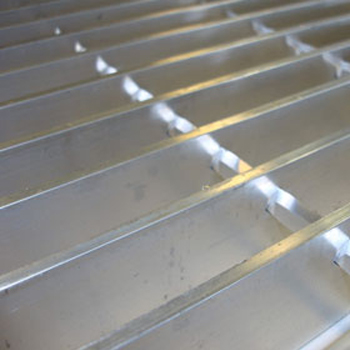

Arabian Gratings Top Notch Gratings is constructed by Rectangular Flats and Round Bars. The grating will have the round bar on the top of the grating by using manual punching method.
| Load Bar Height | 20, 25, 30, 40, 50 upto 60mm |
| Load Bar Thickness | 3,4,5 & 6mm |
| Cross Bar | 6,8 & 10mm Round (or) 6,8 & 10mm Square Bar |
| Load Bar Type | Plain |
| Material | Stainless Steel AISI 304/ 304 L/ 316/ 316 L Grade |
| Finish | Mill Finish/ Brush Finish/ Mirror Finish/ Electro Polish Finish |

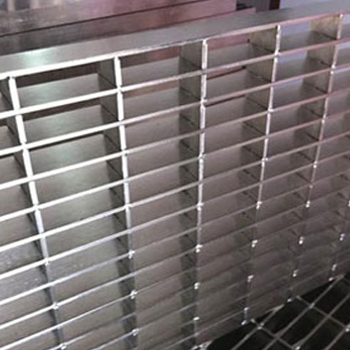

Arabian Gratings Pass Thru Grating is constructed by Rectangular Flats and Round Bars. The Grating will have the round bar on the Centre of the Flat bar by using manual punching method.
| Load Bar Height | 20, 25, 30, 40, 50 upto 60mm |
| Load Bar Thickness | 3,4,5 & 6mm |
| Cross Bar | 6,8 & 10mm Round Bar |
| Load Bar Type | Plain (or) Serrated |
| Material | Stainless Steel AISI 304/ 304 L/ 316/ 316 L Grade |
| Finish | Mill Finish/ Brush Finish/ Mirror Finish/ Electro Polish Finish |
In Press Lock Type of S.S. Gratings, both the Load Bearing and Transverse Bars are Flat Materials. Press lock Gratings are mande by Notching the Load Bearing Bars and then Interlocking with cross Bars at Very High Pressure for vehicle passing trenches. In addition to Stainless Steel, we also offer these types of Gratings in Mild Steel, and Aluminium Materials.
| Load Bar Height | 20, 25, 30, 40, 50 upto 60mm |
| Load Bar Thickness | 3,4,5 & 6mm |
| Cross Bar Height | 10, 12, 15, 20, 25, 30, 40, 50 upto 60mm |
| Load Bar Type | Plain (or) Serrated |
| Material | Stainless Steel AISI 304/ 304 L/ 316/ 316 L Grade |
| Finish | Mill Finish/ Brush Finish/ Mirror Finish/ Electro Polish Finish |
